MicroView (Internal & External Microscope Options)

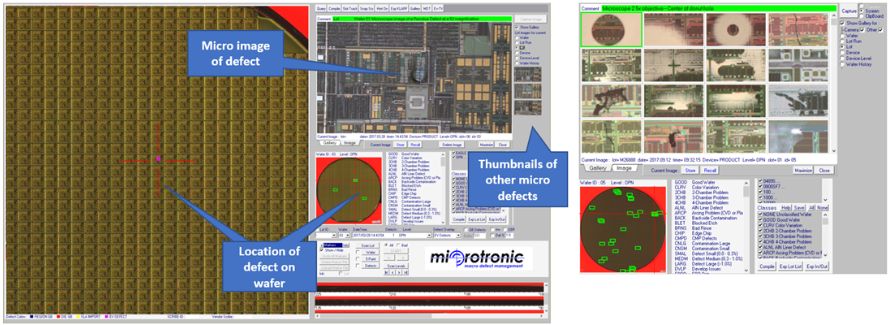

MicroView Camera Capture

MicroView allows microscope and other images to be captured and stored in the EAGLEview database along with the macro images.  MicroView provides a repository for storing/reviewing images and will be archived with the lot data for easy retrieval years later.

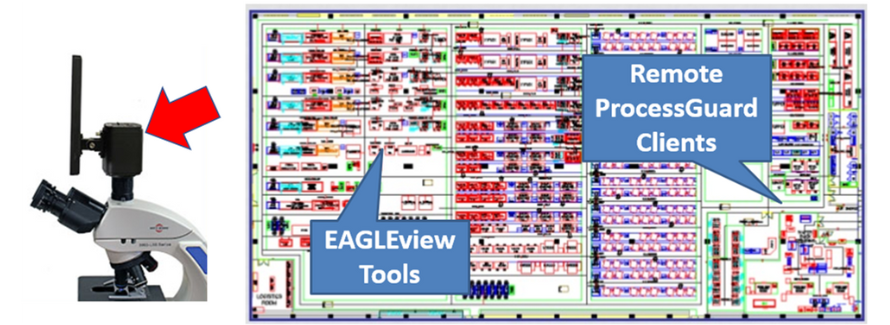

External MicroView

This option integrates a Microtronic supplied camera onto your existing microscope allowing microscope images to be imported from a remote ProcessGuard Client anywhere. This microscope can be across the fab, in another building or at another site.

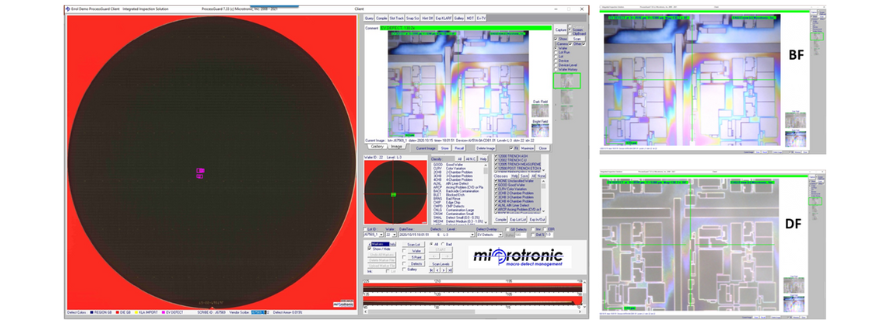

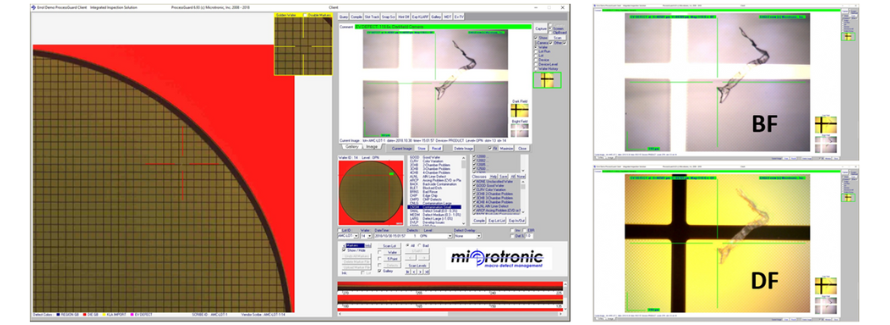

Internal MicroView

This option integrates a microscope camera into the Microtronic EAGLEview platform.   Upon completion of the macro inspection, users define which levels and/or devices will have microscope images captured.
