Marginal semidonductor wafer defects can still slip past final electrical testing. Here’s how to catch more of them…

Why “good” die sometimes go bad

Final electrical test remains one of the best ways to assess a circuit’s ultimate viability. But we know, unfortunately, that even 100% end-of-line electrical testing of semiconductor wafers will not guarantee that chips will not fail in the field. Certain non-killer but marginal wafer defects can still slip through electrical testing if they have sufficient electrical connectivity, even though it may be less than optimal. And over the longer term, chips like these can become reliability “time-bombs.” In the end products, repeated thermal and electrical overstress can cause electromigration and push such circuits into failure.

Fortunately, there’s another tool that can catch many of these latent defects. It’s a way that can provide additional defect information, earlier in the process — using high-speed in-line macro defect inspection.

Good die may not all be equally good

Image 1 below is an in-line semiconductor macro wafer inspection picture showing a common surface scratch – in a “Z” shape – on a wafer. Now compare that with Image 2, which shows the final electrical test result for the same wafer. You will notice that not all the die within the Z area failed. The electrical test seems to indicate that there are still a number of “good” (green) die within the Z pattern — even though we might reasonably suspect that additional die within that area could actually have been adversely affected by the scratch.

Final electrical test remains one of the best ways to assess a circuit’s ultimate viability. But we know that, unfortunately, even 100% end-of-line electrical testing of semiconductor wafers will not guarantee that chips will not fail in the field. Certain non-killer but marginal wafer defects can still slip through electrical testing if they have sufficient electrical connectivity, even though it may be less than optimal. Over the longer term, chips like these can become reliability “time-bombs.” In the end products, repeated thermal and electrical overstress can cause electromigration and push such circuits into failure.

Fortunately, there’s another tool that can catch many of these latent defects. It’s a way that can provide additional defect information, earlier in the process — using high-speed in-line macro defect inspection…

Good die may not all be equally good

Image 1 below is an in-line semiconductor macro wafer inspection picture showing a common surface scratch – in a “Z” shape – on a wafer. Now compare that with Image 2, which shows the final electrical test result for the same wafer. You will notice that not all the die within the Z area failed. The electrical test seems to indicate that there are still a number of “good” (green) die within the Z pattern — even though we might reasonably suspect that additional die within that area could actually have been adversely affected by the scratch.

In Images 3 and 4 to the right we can see another example:

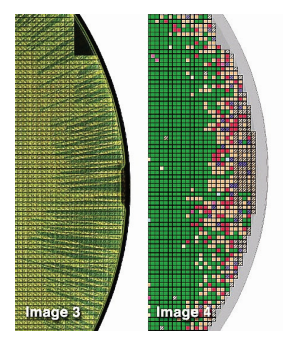

Image 3, from in-line semiconductor macro wafer inspection, clearly reveals a problem of inadequate photoresist coverage at the edge of the wafer. However, final electrical testing of the same wafer, shown in Image 4, again reports fewer failed (non-green) die than might have been expected, given the extent of the photoresist issue.

So, as before, we might well suspect that at least some of those “good” die at the periphery of the failed areas may actually be compromised, at least to some degree.

More complete wafer defect information = improved yields and better inspections

Those are just two of the many “gray area” scenarios that allow marginal devices to get past electrical test and into customers’ hands. In the examples shown above, final electrical testing did not have the benefit of the earlier macro wafer inspection information.

Fortunately, however, today’s ultra high-speed automated macro defect wafer inspection systems can automatically provide a wealth of additional defect data – to inform and improve every subsequent processing step and inspection. We’ll talk more about that in a forthcoming issue of Macro Intelligence.

Ultra-fast full-wafer macro defect inspection – to complement micro sampling

Because of their ultra-high speed, today’s macro defect inspection systems have become an essential complement to micro inspection. For example, the EagleView from Microtronic can provide fabs with full-wafer semiconductor macro inspection of all the wafers in the lot, without recipes – in just a few minutes! So there’s no need for macro sampling.

This allows macro defect inspection to be used after many more process steps, to catch more problems earlier. Which means that fabs can take more specific corrective actions much sooner – to minimize scrap, increase yields, and reduce costs.

Specializing in semiconductor macro defect inspection

For over 20 years Microtronic has focused on semiconductor wafer macro defect inspection — optimizing it to improve yields and reliability. If you have questions in any of these areas, please contact us.
